Vertical sky component analysis and solar hours
Aged care facility, early stage evaluation
ÅWL Arkitekter, Sweden, 2020

Vertical sky component analysis of the north oriented space behind the building for the evaluation of the area for recreation of the elderly inhabitatns, where direct sunlight is required. The calculation performed by Rhino and Grasshoper, the result is in sun hours per day.

visualization

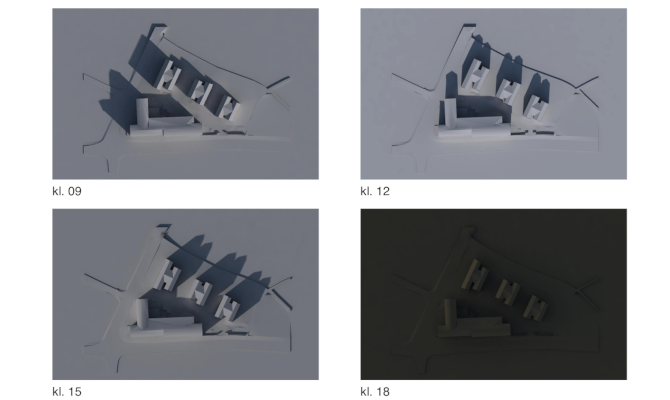

Sun Study during the equinox and specific times. The analysis was performed by Archicad.


visualization

Dayligt factor analysis
Kindergarden and elderly housing, building permit
ÅWL Arkitekter, 2020

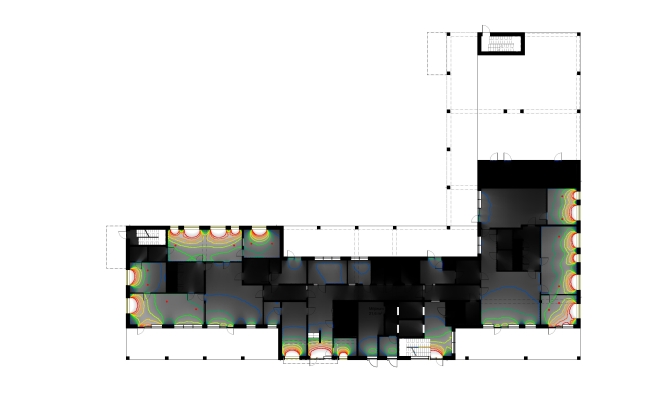

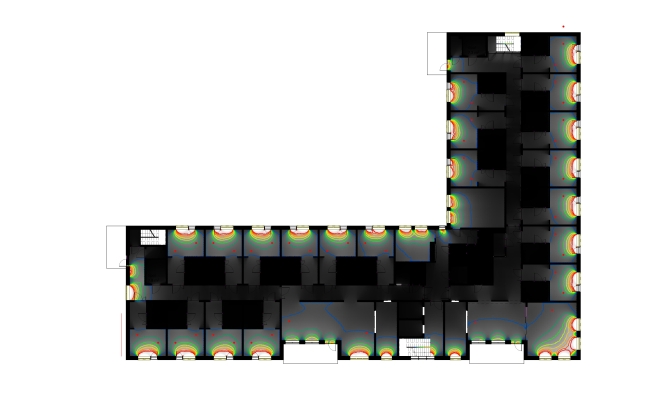

The area och kindergarden and elderly house were designed to filfull The Nordic Swan Ecolabel. The calculations were performed by Velux daylighitng tool, the reuslt is in percents according to DF measurements.

visualization

visualization

Vertical sky component analysis
Residential complex, early stage
ÅWL Arkitekter, 2019

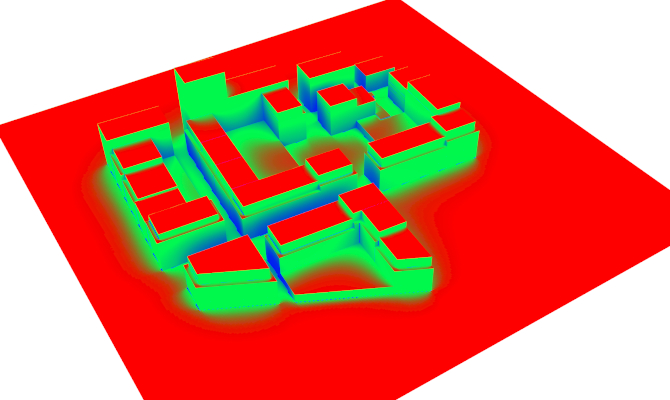

Vertical sky component, volume study of the facades. The calculation was performed by Rhino and Grasshoper, the result is in percentage.

visualization

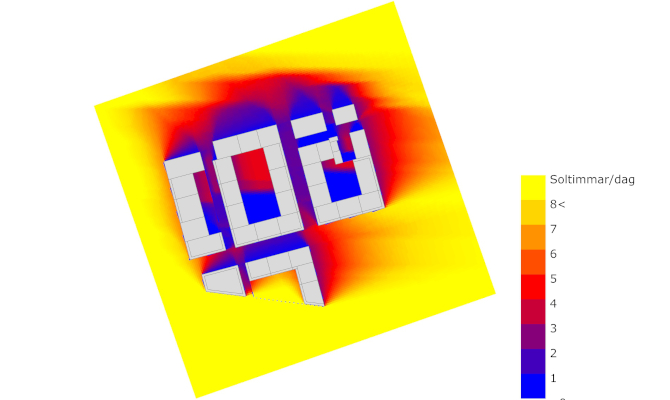

Vertical sky component, volume study of courtyards. The calculation was performed by Rhino and Grasshoper, the result is in sun hours.

visualization
